Levels

Histogram

The computer measures brightness in an image on a scale from 0 (black) to 255 (white), everything in between is a shade of gray. The histogram is a graph of an image's brightness values from 0 to 255 on the x axis vs. the number of pixels along the side (y axis). You can see in this histogram that most of the pixels are in the gray areas in the middle. There are no black pixels in the image and a sudden spike of white pixels at the 255 mark.

The histogram is very useful to see what the dynamic range of your image is. It helps you identify a black point and a white point while correcting the contrast and color in an image. The basic goal is to get the image to have a ranges of pixels filling the entire histogram from 0-255. You can tell when an picture was scanned on a cheap scanner because the pixels will be squashed towards one end or the other (usually the dark end).

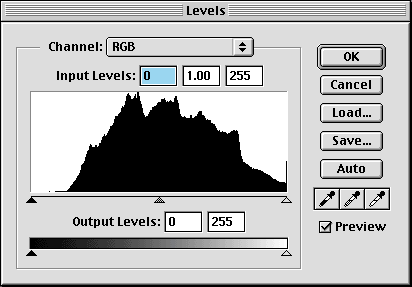

Levels Dialog Box

  • Accessed through command-L (or Image>Adjust>Levels if you're a wimp)
  • Sliding the black triangle adjusts the black point of your image and makes everything it passes totally black.
  • sliding the gray triangle adjusts the white point and makes everything it passes totally white.
  • the middle triangle adjusts the midtones and makes the overall image lighter as you drag to the left and darker as you drag to the right.

  • Let's make some lightning to see how it works
